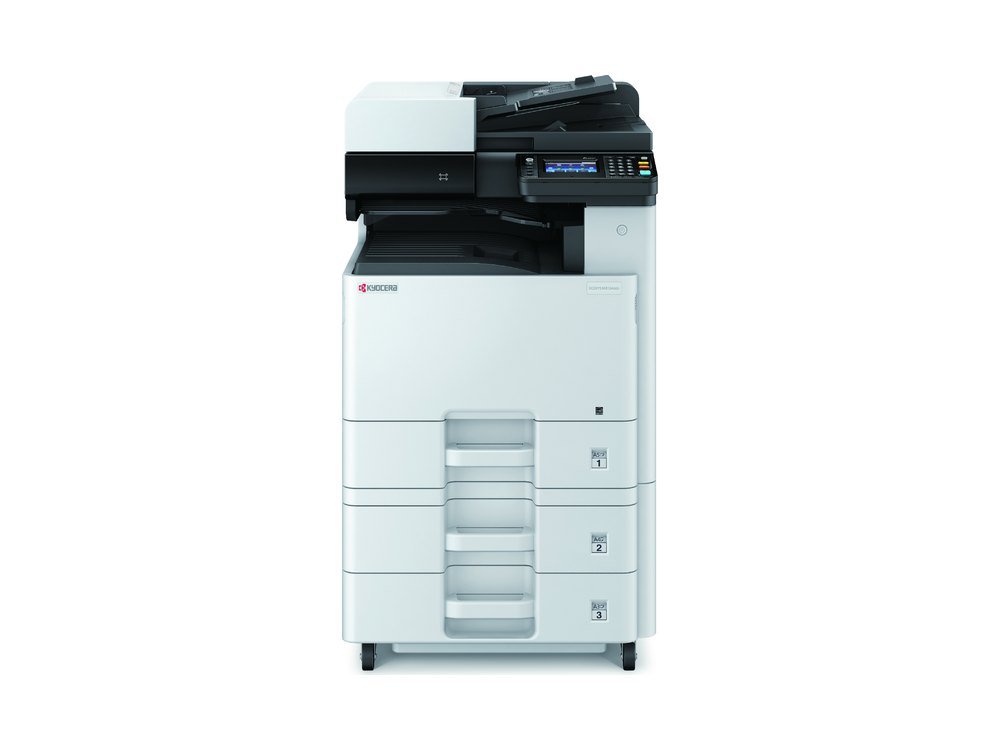

Home / Imaging / Kyocera ECOSYS M8124cidn
| Main Specifications | |
| Main Function | Copy, Print, Scan, Fax (Optional) |
| Writing Method | Semiconductor Laser |
| CPU | ARM Cortex-A9 (Dual Core) 1.2GHz |
| Print Speed (A4) (Mono/Color) | 24/24 ppm |
| Scanning Speed (A4) 300dpi - Simplex | 50/50 ipm |
| Scanning Speed (A4) 300dpi - Duplex | 16/16 ipm |
| Memory | Standard 1.5GB (Max. 3GB) |
| SSD Capacity | SSD 32GB (Optional) / SSD 128GB (Optional) |
| Warm Up Time | 30 seconds or less |
| Paper Capacity - Standard | 600 sheets [1 x 500 sheets (Cassette) + 100 sheets (MPT)] |
| Paper Capacity - Maximum | 1,600 sheets (Main Unit + 2 x 500 sheets PF-471 x1 + MPT) |
| Paper Size - Cassette | Min. A5R – Max. A3 (Legal) |
| Paper Size - MPT | Min. A5R – Max. A3 (Legal) |
| Paper Weight - Cassette | 60 - 256 g/m 2 |
| Paper Weight - MPT | 60 - 256 g/m 2 |
| Duplex Printing | Paper size: A5R - A4/Legal; Paper weight: 60 - 120 g/m 2 |
| Output Capacity | Max. 250 sheets + 30 sheets with standard Job Separator |
| Control Panel | 4.3-inch Color Touch LCD Panel |
| Document Processor | Standard (Max. 50 sheets RADF Type) |
| Dimension (W x D x H) (Main Unit) | 590mm x 590mm x 753mm (with DP) |
| Weight (Main Unit) | Approx. 76 kg |
| Power Consumption (Standard configuration) - Copy/Print Mode | 510W |
| Power Consumption (Standard configuration) - Stand-by Mode | 80W |
| Power Consumption (Standard configuration) - Energy Saver | 0.5W |
| Noise (ISO7779/ ISO9296) - Copy/Print Mode | 53dB(A) |
| Noise (ISO7779/ ISO9296) - Stand-by Mode | 34dB(A) |
| Copy Functions (Standard) | |
| Copy Size | Max. A3 (Ledger) – Min. A6R |
| Resolution | 600 x 600 dpi |
| First Copy Time (Mono/Color) | 7.6/ 9.8 seconds |
| Zoom Ratio - Manual | 25% – 400% (1% per Step) |
| Zoom Ratio - Pre-defined | 5R5E |
| Multiple Copy | 1 – 999 |
| Print Functions (Standard) | |
| Resolution | 600 x 600 dpi; 1,200 x 1,200 dpi |
| PDL | PRESCRIBE, PCL6, KPDL3 (Postscript 3 compatible), XPS, PDF Direct Print Ver. 1.7 |
| First Print Out Time (Mono/Color) | 7.5/ 10.2 seconds |
| Supported Protocol | TCP/IP, NetBEUI, FTP, Port 9100, LPR, IPP, IPP over SSL, WSD Print, Apple Bonjour |
| Operating System Supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10; Apple Macintosh OS X 10.5 or later; Linux |
| Interface | USB 2.0 High Speedx1; Ethernet 10BASE-T/100BASE-TX/1000BASE-T; USB Host Interface (USB Host)x2; NFC TAGx1; 802.11 b/g/n/Wireless LAN/WiFi Direct (Optional) |
| USB Memory Printing Format | TIFF, JPEG, PDF, XPS, Open XPS |
| Mobile Printing | AirPrint, Mopria, KYOCERA Mobile Print |
| Scan Functions (Standard) | |
| Color Selection | Auto Color (Color/Gray); Auto Color (Color/B&W); Full Color; Grayscale; Black & White |
| Resolution | 600dpi, 400dpi, 300dpi, 200dpi, 200x400dpi, 200x100dpi |
| File Format | TIFF, JPEG, XPS, OpenXPS, PDF (High-compression PDF) |
| Image Type Mode | Text, Photo, Text + Photo, Light Text (Fine Line) |
| Transmission Type | Scan to SMB; Scan to E-mail (SMTP, SMTP over SSL); Scan to FTP or FTP over SSL; Scan to USB; TWAIN Scan; WSD Scan; WIA Scan |
| Address Storage | 200 addresses (Common address list), 50 groups (Group address list) |
| Fax Functions (Optional) | |
| Original Size | Max. A3 (Ledger) - Min. A5 (Statement) |
| Coding Method | MMR, MR, MH, JBIG |
| Transmission Speed | 33.6 kpbs |
| Memory | 12MB |
| Network FAX | Yes |
| Specifications as published by Kyocera Document Solutions India; subject to change by the manufacturer. | |
7 inch Touch Panel*: User's operation will be more easy
Easy print / Easy Scan: Built-in NFC tags in the operation section
User friendly: “ID card copy” & "Erase Shadowed Areas" function
Supplied through the authorised manufacturer channel with full warranty. Installation, network configuration and user handover are included.
AMC is available as AMC with Spares Coverage or as a service-only AMC, with scheduled maintenance, remote monitoring and genuine spare parts. We also service machines bought from other vendors.
