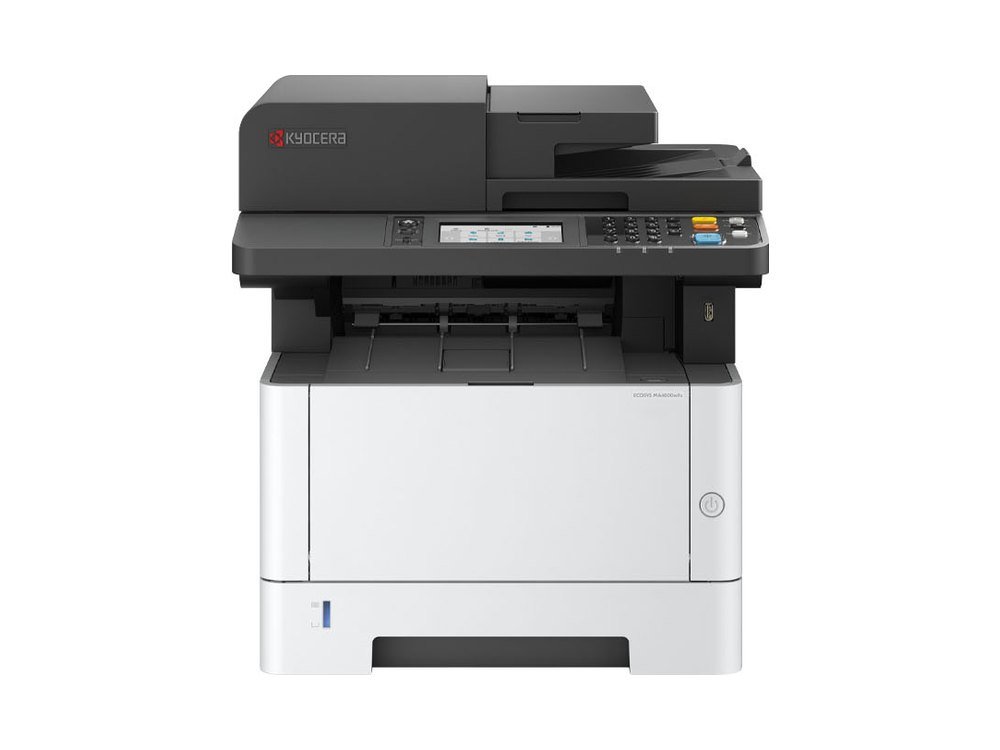

Home / Imaging / Kyocera ECOSYS MA4000wifx
| Main Specifications | |
| Main Function | Copy, Print, Scan, Fax(Optional) |
| Processing Method | Laser exposure dry electrostatic transcription |
| CPU | ARM Cortex A53 single 1.0GHz |
| Print Speed (A4) (Mono) | 40 ppm |
| Scanning Speed (A4) Simplex/Duplex (Mono/Color) - 300dpi | Simplex (Mono/Color): 40ipm/23ipm, Duplex(Mono/Color): 80ipm/46ipm |
| Scanning Speed (A4) Simplex/Duplex (Mono/Color) - 600dpi | Simplex (Mono/Color): 18ipm/7ipm, Duplex(Mono/Color): 36ipm/14ipm |
| Memory | Standard 2GB (Max. 2GB) |
| Warm Up Time | 29 seconds |
| Paper Capacity - Standard | 250 sheets (Cassette) + 100 sheets (MPT) |
| Paper Capacity - Maximum | 850 sheets (Main Unit + 250 sheets PF-1100 x2 + MPT) |
| Paper Size - Cassette | Min. A6R - Max. A4 (Legal) |
| Paper Size - Option | Min. A6R - Max. A4 (Legal) |
| Paper Size - MPT | Min. 70mm x 148mm - Max. A4 (Legal) |
| Paper Weight - Cassette | 60 - 163 g/m2 |
| Paper Weight - Option | 60 - 163 g/m2 |
| Paper Weight - MPT | 60 - 220 g/m2 |
| Duplex Printing | Paper size: A5R - A4/Legal; Paper weight: 60 - 163 g/m2 |
| Output Capacity | Max. 150 sheets face-down |
| Control Panel | 4.3 inch Color Touch LCD Panel |
| Document Processor | Standard (Max. 50 sheets one-path duplex scanning Type) |
| Dimension (W x D x H) (Main Unit) | 417mm x 412mm x 437mm |
| Weight (Main Unit) | Approx. 19.0kg *excluding the toner container |
| Power Consumption (Standard configuration) - Copy/Print Mode | 574.4 W |
| Power Consumption (Standard configuration) - Stand-by Mode | 11.8 W |
| Power Consumption (Standard configuration) - Energy Saver | 0.4 W |
| Noise (ISO7779/ ISO9296) - Copy/Print Mode | 52dB(A); Quiet Mode: 48dB(A) |
| Noise (ISO7779/ ISO9296) - Stand-by Mode | 29dB(A) |
| Copy Functions (Standard) | |
| Copy Size | Min. 100mm x 148mm - Max. A4 (Legal) |
| Resolution | 600 x 600 dpi |
| First Copy Time (Mono/Color) | 6.4 seconds or less |
| Zoom Ratio | Manual: 25% - 400% (1% per Step) |
| Multiple Copy | 1 – 999 |
| Print Functions (Standard) | |
| Resolution | 300 x 300 dpi, 600 x 600 dpi, Fast1200, Fine1200 |
| PDL/Emulations | PCL6 (PCL5e, PCL-XL), KPDL3 (Postscript 3 compatible), PRESCRIBE, Line Printer, IBM Proprinter, Epson LQ-850, PDF Direct Print |
| First Print Time | 6.4 seconds or less |
| Interface | USB 2.0 High Speedx1; Ethernet 10BASE-T/100BASE-TX/1,000BASE-T; USB Host Interface (USB Host)x1; 802.11 b/g/n/ac/Wireless LAN/WiFi Direct (For ECOSYS MA3500wfx and MA4000wifx only) |
| Network Printing | TCP/IP, FTP, LPR, Port9100, NetBEUI, Apple Bonjour |
| E-mail printing | Data printing of E-mail received data Data format : PDF, PS, Text, TIFF, JPEG, XPS, OpenXPS |
| Secure printing | IPP over TLS |
| Mobile Printing | AirPrint, Mopria, KYOCERA Mobile Print, KYOCERA MyPanel |
| Scan Functions (Standard) | |
| Send Size | Min. 50mm x 50mm - Max. A4 (Legal) |
| Resolution | 600dpi, 400dpi, 300dpi, 200dpi, 200x400dpi, 200x100dpi, 1200x1200dpi (Only TWAIN driver and WIA driver) |
| File Format | TIFF, JPEG, XPS, OpenXPS, PDF (MMR/JEPG/High-compression PDF), PDF/A |
| Image Type Mode | Text, Photo, Text + Photo, Light text + Fine line, Text (for OCR) |
| Transmission Type | Scan to SMB; Scan to E-mail ; Scan to FTP or FTP over TLS; Scan to USB; TWAIN Scan; WSD Scan, WIA Scan |
| Address Storage | 300 addresses (Common address list), 50 groups (Group address list) |
| Fax Functions (Optional) | |
| Original Size | Min. A6R - Max. A4 (Legal) |
| Coding Method | MMR, MR, MH, JBIG |
| Transmission Speed | 33.6 kpbs |
| Transmission Time | 3 sec. or less |
| Network FAX | Yes |
| Specifications as published by Kyocera Document Solutions India; subject to change by the manufacturer. | |
5GHz wireless LAN compatible with Wi-Fi Direct: Wireless LAN operates on the 5GHz band for fast communication and is compatible with IEEE802.11a/b/g/n/ac standards. It eliminates the need for LAN cables, providing greater flexibility in installation locations.
This device can serve as a standalone fax machine with a maximum 300-entry address book: The address book conveniently stores scanned documents and allows you to register multiple transmission methods for each contact. You can save up to 300 individual entries and 50 groups, enabling simultaneous transmissions. Frequently used destinations can be assigned to one-touch buttons for quick access, making it an excellent choice for a dedicated fax machine.
