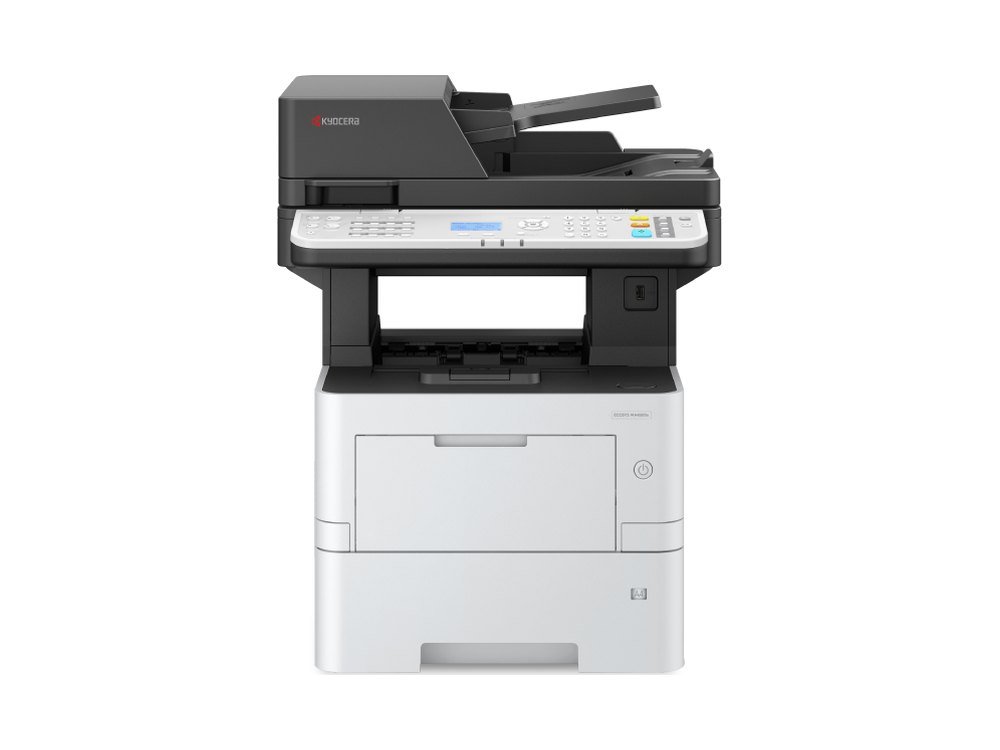

Home / Imaging / Kyocera ECOSYS MA4500x
| Main Specifications | |
| Main Function | Copy, Print, Scan, Fax (Applicable to MA4500ifx/MA6000ifx models) |
| Writing Method | Semiconductor Laser |
| CPU | Cortex-A53 Dual core 1.4GHz |
| Print Speed (A4) (Mono)Simplex (Mono) | 45ppm |
| Scanning Speed (A4) 300dpi (Mono/Color) - Simplex | 60/40 ipm |
| Scanning Speed (A4) 300dpi (Mono/Color) - Duplex | 26/17 ipm |
| Memory | Standard 1GB (Max. 3GB) |
| Warm Up Time | 16 seconds |
| Paper Capacity - Standard | 500 sheets (Cassette) + 100 sheets (MPT) |
| Paper Capacity - Maximum | 2,600 sheets (Main Unit + 500 sheets PF-3110 x4 + MPT) |
| Paper Size - Cassette | Min. A5R - Max. A4 (Legal) |
| Paper Size - MPT | Min. 70mm x 139.7mm - Max. A4 (Legal) & Banner Print of 216mm x 915mm |
| Paper Weight - Cassette | 60 to 120 g/m2 |
| Paper Weight - MPT | 60 to 220 g/m2 |
| Duplex Printing | Paper size: A5R to A4/Legal; Paper weight: 60 - 120 g/m2 |
| Output Capacity | Max. 250 sheets face-down |
| Control Panel | 5 lines LCD |
| Document Processor | Standard (Max. 75 sheets RADF) |
| Document Processor | Duplex scanning |
| Dimension (W x D x H) (Main Unit) | 475mm x 476mm x 575mm |
| Weight (Main Unit with Initial Toner) | Approx. 22.3 kg |
| Power Consumption (Standard configuration) - Copy/Print Mode | 584.7W / 601.6W |
| Power Consumption (Standard configuration) - Stand-by Mode | 54.9W |
| Power Consumption (Standard configuration) - Energy Saver | 0.5W |
| Noise (ISO7779/ ISO9296) - Copy/Print Mode | 54dB(A) |
| Noise (ISO7779/ ISO9296) - Stand-by Mode | 30dB(A) |
| Copy Functions (Standard) | |
| Copy Size | Max. A4 (Legal) – Min. A6R |
| Resolution | 600 x 600 dpi |
| First Copy Time | 7.0 seconds or less |
| Zoom Ratio - Manual | 25% to 400% (1% per Step) |
| Zoom Ratio - Pre-defined | 7R5E |
| Multiple Copy | 1 to 999 |
| Print Functions (Standard) | |
| Resolution | 600 x 600 dpi, Fast 1200, Fine 1200 |
| PDL | PCL6 (PCL XL / PCL 5c), KPDL3 (Postscript 3 compatible), XPS |
| First Print Out Time | 5.3 seconds or less |
| Supported Protocol | NetBEUI, FTP, Port 9100, LPR, IPP, IPP over SSL, WSD Print, Apple Bonjour |
| Interface | USB 2.0 High Speedx1; Ethernet 10BASE-T/100BASE-TX/1000BASE-T; USB Host Interface (USB Host)x2 |
| USB Memory Printing | Standard |
| USB Memory Printing Format | TIFF, JPEG, PDF, XPS |
| Scan Functions (Standard) | |
| Color Selection | ACS; Full Color; Grayscale; Black & White |
| Resolution | 600dpi, 400dpi, 300dpi, 200dpi, 200x400dpi, 200x100dpi |
| File Format | TIFF, JPEG, XPS, PDF (MMR/JPG/High-compression PDF) |
| Image Type Mode | Text, Photo, Text + Photo |
| Transmission Type | Scan to SMB; Scan to E-mail ; Scan to FTP or FTP over SSL; Scan to USB; TWAIN Scan; WSD Scan |
| Address Storage | 200 addresses (Common address list), 50 groups (Group address list) |
| Specifications as published by Kyocera Document Solutions India; subject to change by the manufacturer. | |
7-inch panel with enhanced visibiity realizes intuitive operation: Equipped with a 7-inch color touch panel with enhanced visibiity realizes intuitive operation. Implemented with a new user-friendly interface that uses fewer colors to improve visibility, simple icons and graphics to enable more intuitive operation. The compact device operates as smoothly as an A3 MFP, ensuring a comfortable user experience.
Applicable for wireless LAN in the 5 GHz frequency band: Wireless LAN* supports 5GHz frequency band, enabling high-speed communication. It supports IEEE802.11a/b/g/n/ac standards. Using a wireless LAN eliminates the need for LAN cable wiring and eliminates restrictions on installation locations.
Connect to multiple interfaces simultaneously: Installing an optional network interface card enables support for two network environments alongside the standard interface. Even in government offices with mission-critical and information networks, equipment consolidation reduces installation costs.
Supplied through the authorised manufacturer channel with full warranty. Installation, network configuration and user handover are included.
AMC is available as AMC with Spares Coverage or as a service-only AMC, with scheduled maintenance, remote monitoring and genuine spare parts. We also service machines bought from other vendors.
