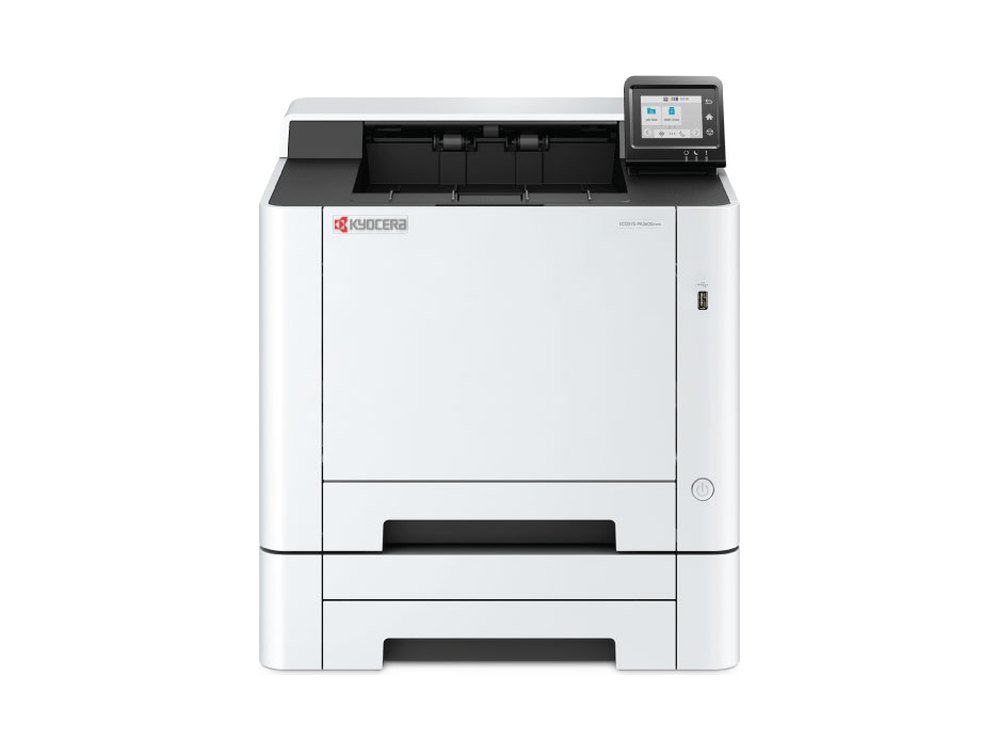

Home / Imaging / Kyocera ECOSYS PA2600cwx
| Main Specifications | |
| Type | Desktop |
| Writing Method | Semiconductor Laser |
| Print Speed (A4) (Mono/Color) | 26/26 ppm |
| First Print Out Time (Mono/Color) | 8/10 seconds |
| Warm Up Time | 29 seconds |
| Resolution | 600 x 600 dpi, 1,200 x 1,200 dpi |
| Duplex Printing | Paper size: A5R - A4/Legal; Paper weight: 60 - 120 g/m2 |
| Control Panel | 2.7 inch Touch screen panel |
| Power Consumption Standard configuration) - Print Mode | 375W |
| Power Consumption Standard configuration) - Stand-by Mode | 33W |
| Power Consumption Standard configuration) - Sleep Mode | 0.3W |
| Noise (ISO7779/ ISO9296) - Print Mode | 49 dB(LpAm); Quiet mode: 44 dB(LpAm) |
| Noise (ISO7779/ ISO9296) - Stand-by Mode | 30 dB(LpAm) |
| Dimension (W x D x H) (Main Unit) | 410mm x 410mm x 329mm |
| Weight (Main Unit) | Approx. 21 kg |
| Controller | |
| CPU | ARM Cortex-A53 single core 1.0GHz |
| Memory | Standard 1GB (Max. 1GB, No expansion required) |
| Interface | USB 2.0 High Speedx1; Ethernet 10BASE-T/100BASE-TX/1000BASE-T; 802.11 b/g/n/ac/Wireless LAN/WiFi Direct (WiFi model only) |
| PDL | PRESCRIBE, PCL6 (PCL XL, PCL 5c), KPDL3 (Postscript 3 compatible), XPS / OpenXPS, PDF Direct Print |
| Network Printing | TCP/IP, FTP LPR, Port9100, NetBEUI, Apple Bonjour |
| E-mail Printing | Printing received e-mail data Data format : PDF, PS, Text, JPEG, XPS, OpenXPS, TIFF |
| Secure Printing | IPP over TLS |
| Mobile Printing | AirPrint, Mopria, KYOCERA Mobile Print, KYOCERA MyPanel |
| Paper Handling | |
| Paper Capacity - Standard | 250 sheets x1 (Cassette) + 50 sheets (MPT) |
| Paper Capacity - Maximum | 550 sheets (Main Unit + PF-5110 x1 + MPT) |
| Paper Size - Cassette | Min. A6R – Max. A4 (Legal) ; Custom (100 × 148 – 216 × 356 mm) |
| Paper Size - MPT | Min. A6R – Max. A4 (Legal) ; Custom (70 × 148 – 216 × 356 mm) |
| Paper Weight - Cassette | 60 – 163 g/m2 |
| Paper Weight - MPT | 60 – 220 g/m2 |
| Duplex Printing | Paper size: A5R – A4/Legal; Paper weight: 60 – 120 g/m2 |
| Output Capacity | Max. 150 sheets face-down |
| Specifications as published by Kyocera Document Solutions India; subject to change by the manufacturer. | |
Compact design for installation in any location: The ECOSYS PA2600cwx features a compact size of 410mm x 410mm x 329mm, making it easy to position anywhere, even in small spaces. This design maximizes your workspace and ensures efficient printing.
5GHz wireless LAN compatible with Wi-Fi Direct: Wireless LAN operates on the 5GHz band for fast communication and is compatible with IEEE802.11a/b/g/n/ac standards. It eliminates the need for LAN cables, providing greater flexibility in installation locations.
Supplied through the authorised manufacturer channel with full warranty. Installation, network configuration and user handover are included.
AMC is available as AMC with Spares Coverage or as a service-only AMC, with scheduled maintenance, remote monitoring and genuine spare parts. We also service machines bought from other vendors.
