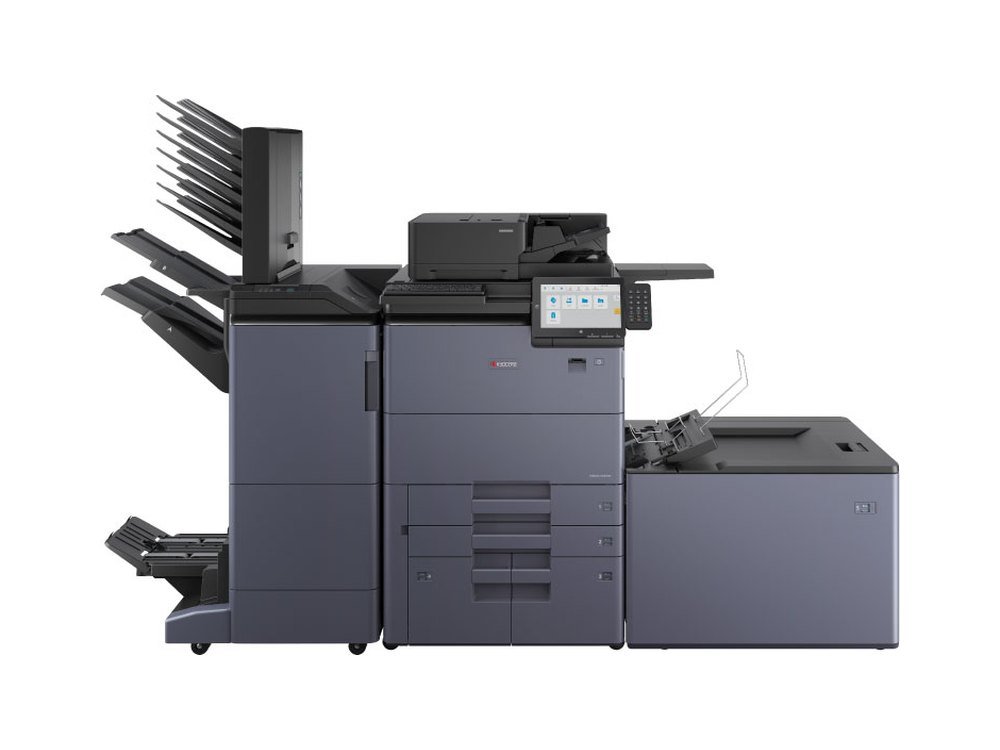

Home / Imaging / Kyocera TASKalfa MZ10500i
| Main Specifications | |
| Main Function | Copy, Print, Scan, Fax (Optional) |
| Writing Method | Laser exposure dry electrostatic transcription method |
| CPU | Q or IQ LS1046A 1.6GHz |
| Print Speed (A4) (Mono) | 105 ppm |
| Monthly Duty Cycle | Maximum 400,000 pages per month |
| Scanning Speed (A4) 300dpi - Simplex | 150 ipm |
| Scanning Speed (A4) 300dpi - Duplex | 300 ipm |
| Memory | Standard 7GB (Max. 7GB) |
| SSD/HDD Capacity | SSD 256GB (Standard) / 1TB (Optional) |
| Stable Time (From the mainpower ON) | 50 seconds |
| Paper Capacity (A4 / 80 g/m 2) - Standard | 4,350 sheets: 2 x 550 sheets (Cassette) + 250 sheets (MPT)+ 1,500 x 2 sheets (Cassette) |
| Paper Capacity (A4 / 80 g/m 2) - Maximum | 7,550 sheets: 2 x 550 sheets (Cassette) + 250 sheets (MPT)+ 1,500 x 2 sheets (Cassette) + PF-7210 3200 sheets |
| Paper Size - Cassette | Upper cassette : A6R up to SRA3(320 x 450mm) Lower cassette : A6R up to 13 x 19.2inch (330.2 x 487.7 mm) High-capacity paper deck : up to A4 |
| Paper Size - MPT | Min. A6R - Max. 13 x 19.2inch (330.2 x 487.7mm) & Banner Print (1220mm x 330.2mm) |
| Paper Weight - Cassette | 52 - 300 g/m 2 |
| Paper Weight - MPT | 52 - 300 g/m 2 ; Banner paper 136 - 163 g/m 2 |
| Duplex Printing | A5R - A4 : 52 - 256 g/m 2 A3 - SRA3: 60 - 256 g/m 2 |
| Maximum Output Capacity (A4 / 80 g/m 2) | 5,000 sheets (DF-7200/7210：A Tray 4,000 sheets ＋ B Tray 200 sheets ＋ C Tray 100 sheets + MT-7200：700 sheets) |
| Control Panel | 10.1 inch Capacitance touch panel |
| Dimension (W x D x H) (Main Unit) | 685mm x 660mm x 1,227mm |
| Weight (Main Unit) | Approx. 152 kg |
| Power Consumption (Standard configuration) - Maximum | 2,400W or less |
| Power Consumption (Standard configuration) - Copy/Print Mode | 1,530W |
| Power Consumption (Standard configuration) - Stand-by Mode | 130W |
| Power Consumption (Standard configuration) - Energy Saver | 0.5W |
| Noise (ISO7779/ ISO9296) - Copy/Print Mode (Color/Mono) | 75.5dB |
| Noise (ISO7779/ ISO9296) - Stand-by Mode | 53dB(A) |
| Copy Functions (Standard) | |
| Copy Size | Max. A3 (Ledger) - Min. A6R (StatementR) |
| Resolution | Scanning: 600 x 600 dpi, Writing : 1200 x 1200 dpi |
| First Copy Time (Color/Mono) | 3.5 seconds |
| Zoom Ratio | 25% - 400% (1% per Step) |
| Multiple Copy | 1 - 9,999 |
| Print Functions (Standard) | |
| Resolution | 1,200 x 1,200 dpi |
| PDL & Emulation | PRESCRIBE, PCL6 (PCL XL / PCL 5e), KPDL3 (Postscript 3 compatible), XPS / OpenXPS |
| First Print Out Time (Color/Mono) | 3.9 seconds |
| Operating System Supported | Windows 11, Windows Server 2016/2019/2022, Mac OS X(10.9 or later), Google Chrome OS |
| Interface | USB 3.0 Super-Speed x 1; Ethernet 10BASE-T/100BASE-TX/1000BASE-T; USB Host Interface (USB Host)x4; NFC TAGx1; 802.11 b/g/n/Wireless LAN/WiFi Direct (Optional) |
| Mobile/ Cloud printing | AirPrint, Mopria, NFC, KYOCERA MyPanel and KYOCERA Mobile Print app for iOS and Android, Microsoft Universal Print |
| Scan Functions (Standard) | |
| Color Selection | Color; Grayscale; Black & White |
| Resolution | 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi, 200 x 100 dpi, 200 x 400 dpi |
| File Format | TIFF, JPEG, XPS, OpenXPS, PDF (MMR/JPG compression/High-compression PDF), Searchable PDF (Optional), MS Office file(Optional) |
| Image Type Mode | Text, Photo, Text + Photo, Text (Fine Line) |
| Transmission Type | Scan to PC(SMB); Scan to E-mail (SMTP, SMTP over TLS); Scan to FTP(FTP, FTP over TLS); Scan to USB; TWAIN Source(Network); WSD Scan; WIA Scan, AirPrint(eSCL), Mopria(eSCL), DFS |
| Address Storage | 2,000 addresses (Common address list), 500 groups (Group address list) |
| Fax Functions (Optional) | |
| Original Size | Max. A3 (Ledger) - Min. A6R (StatementR), Banner: 1,600mm |
| Coding Method | MMR, MR, MH, JBIG |
| Transmission Speed | 33.6 kpbs |
| Memory | 170MB |
| Network FAX | Yes |
| Specifications as published by Kyocera Document Solutions India; subject to change by the manufacturer. | |
Enduring Power. Clear Results: TASKalfa MZ10500i Series deliver professional results for complex print and scan jobs. Featuring advanced workflow capabilities, dependable performance, and consistent output, enhancing operational efficiency and cost management.
Powering High-Volume Print & Scan: Efficiently handle large print jobs with steady speed and dependable outcomes—while reducing expenses. Achieve seamless workflows with print speeds reaching 95 pages per minute and scan speeds of up to 300 images per minute, guaranteeing reliable performance consistently.
Enhanced Scanning and Security: TASKalfa MZ10500i Series drives efficiency further by delivering intelligent automation that optimizes document security and workflow accuracy. The advanced scanning features seamlessly protect your sensitive business data while maximizing daily productivity.
Supplied through the authorised manufacturer channel with full warranty. Installation, network configuration and user handover are included.
AMC is available as AMC with Spares Coverage or as a service-only AMC, with scheduled maintenance, remote monitoring and genuine spare parts. We also service machines bought from other vendors.
