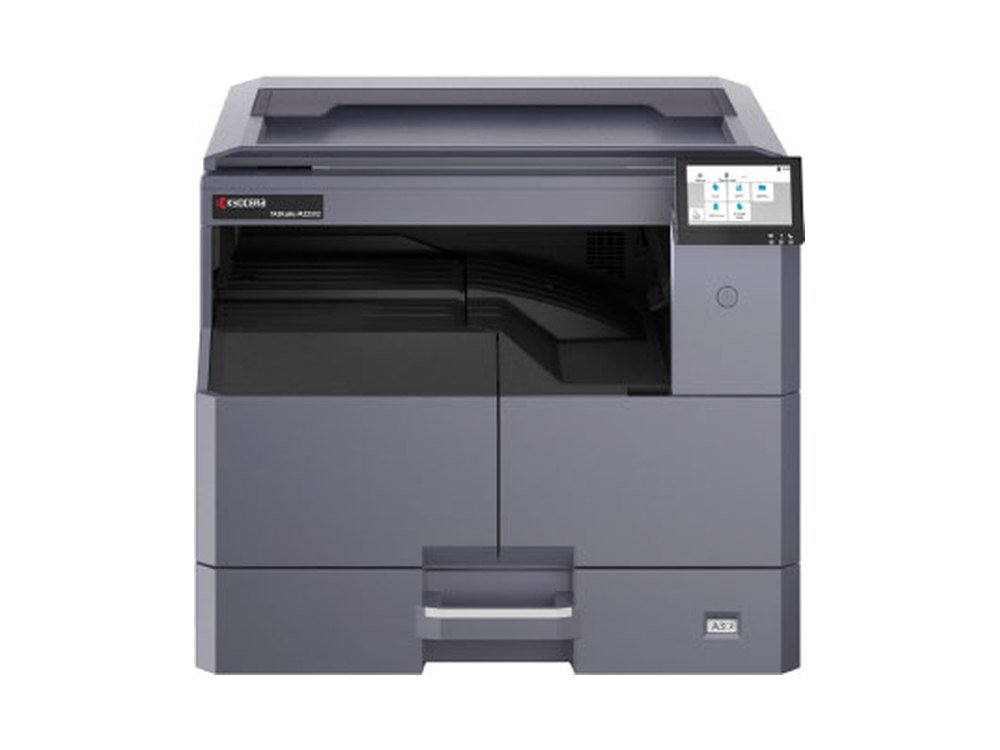

Home / Imaging / Kyocera TASKalfa MZ2202
| Main Specifications | |
| Main Function | Copy, Print, Scan, Fax (Optional) |
| Writing Method | Semiconductor Laser |
| CPU | 1.0GHz |
| Print Speed (A4) - Simplex/Duplex | 22/11 cpm |
| Scanning Speed (A4) 300dpi (Mono/Color) - Simplex | 25/25 ipm |
| Scanning Speed (A4) 300dpi (Mono/Color) - Duplex | 8/8 ipm |
| Memory | 1GB |
| Warm Up Time | 29 seconds |
| Paper Capacity - Stand | 400 sheets: 1 x 300 sheets (Cassette) + 100 sheets (MPT) |
| Paper Capacity - Maximum | 1,300 sheets (Main Unit + PF-480 x 3) + MPT |
| Paper Size - Cassette | Max. A3 (Ledger) - Min. A5R |
| Paper Size - MPT | Max. A3 (Ledger) - Min. A6R |
| Paper Weight - Cassette | 60 to 105 g/m2 |
| Paper Weight - MPT | 45 to 163 g/m2 |
| Duplex Printing (Optional) | Paper size: Max. A3 (Leger) - Min. A5R; Paper weight: 60 to 105 g/m2 |
| Display LCD (Back Light) | 4.3 inch touch panel |
| Dimension (W x D x H) (Main Unit) | 565 x525 x 485mm (with platen) |
| Weight (Main Unit) | 28kg |
| Power Consumption (Standard configuration) - Copy/Print Mode | 409W or less(220-240V) |
| Power Consumption (Standard configuration) - Stand-by Mode | 442W or less(220-240V) |
| Power Consumption (Standard configuration) - Sleep Mode | 0.3W or less |
| Noise (ISO7779/ ISO9296) - Copy/Print Mode | 62dB(A) |
| Noise (ISO7779/ ISO9296) - Stand-by Mode | 40dB(A) |
| Copy Functions (Standard) | |
| Copy Size | Max. A3 (Ledger) - Min. A5R |
| Resolution | 600 x 600 dpi |
| First Copy Time | 5.9 seconds (Table) |
| Zoom Ratio | 25% to 400% (1% per Step) |
| Multiple Copy | 1 to 999 |
| ID Card Copy | Yes (Auto Crop support) |
| N-Up Copy | 2 in 1, 4 in 1, 8 in 1 |
| Print Functions (Standard) | |
| Resolution | 600 x 600 dpi |
| First Print Time | 5.9 seconds |
| PDL | PRESCRIBE, PCL6 (PCL-XL, PCL 5e), KPDL3 (Postscript 3 compatible), XPS, OpenXPS, PDF |
| Operating System | Window 11, Windows Server 2016/2019/2022/2025, Mac OX X(10.9 or later), Google Chrome OS |
| Interface | USB2.0,USB2.0 High Speed x2; 10BASE-T/100BASE-TX/1000BASE-T |
| Mobile Printing | AirPrint, Mopria, KYOCERA MyPanel and KYOCERA Mobile Print app for iOS and Android, Microsoft Cloud printing |
| Scan Functions (Standard) | |
| Resolution | 600×600dpi,400×400dpi,200×400dpi, 300×300dpi(Default),200×200dpi,200×100dpi |
| File Format | TIFF (MMR/JPEG compression), PDF (MMR/JPEG compression/High Compression), JPEG,XPS,Open XPS |
| Image Type Mode | Text, Photo, Text + Photo, Text(OCR) |
| Transmission Type | Scan to PC(SMB); Scan to E-mail (SMTP, SMTP over TLS); Scan to FTP(FTP, FTP over TLS); Scan to USB; TWAIN Source(Network); WSD Scan; WIA Scan, AirPrint(eSCL), Mopria(eSCL), DFS, Chrome OS Scan |
| Fax Functions (Optional) | |
| Original Size | Max. A3 (Ledger) – Min. A5 (Statement) |
| Coding Method | MMR, MR, MH, JBIG |
| Transmission Speed | Super G3 33.6 kbps |
| Transmission Time | 3 seconds or less (JBIG) |
| Fax Resolution | Normal, Fine, Super Fine, Ultra Fine |
| Network FAX | Yes |
| Address Book | 300 single addresses and 50 group addresses |
| One Touch Dial | 100 (Soft Key on the panel) |
| Specifications as published by Kyocera Document Solutions India; subject to change by the manufacturer. | |
Top-class compact design among A3 MFPs: The main unit measures 565 mm (W) × 525 mm (D, installation surface) × 583 mm (H), a desktop size that can even be placed on a desk. The main unit alone can be installed on a desk.
Selectable number of cassettes according to your needs: Cassetttes can be added one at a time to match your work style. Up to three additional cassettes can be added, allowing you to use a total of up to four cassettes (including the main unit's one cassette). Supports a wide range of paper sizes and print volumes, contributing to greater work efficiency.
Long-life design contributes to environmental sustainability: By adopting many highly durable components and incorporating an energy-efficient controller, power consumption during sleep mode is reduced to just 0.3W. Because MFPs are often left with the main power on for fax standby and other functions, we have paid special attention to ease of use.
Supplied through the authorised manufacturer channel with full warranty. Installation, network configuration and user handover are included.
AMC is available as AMC with Spares Coverage or as a service-only AMC, with scheduled maintenance, remote monitoring and genuine spare parts. We also service machines bought from other vendors.
