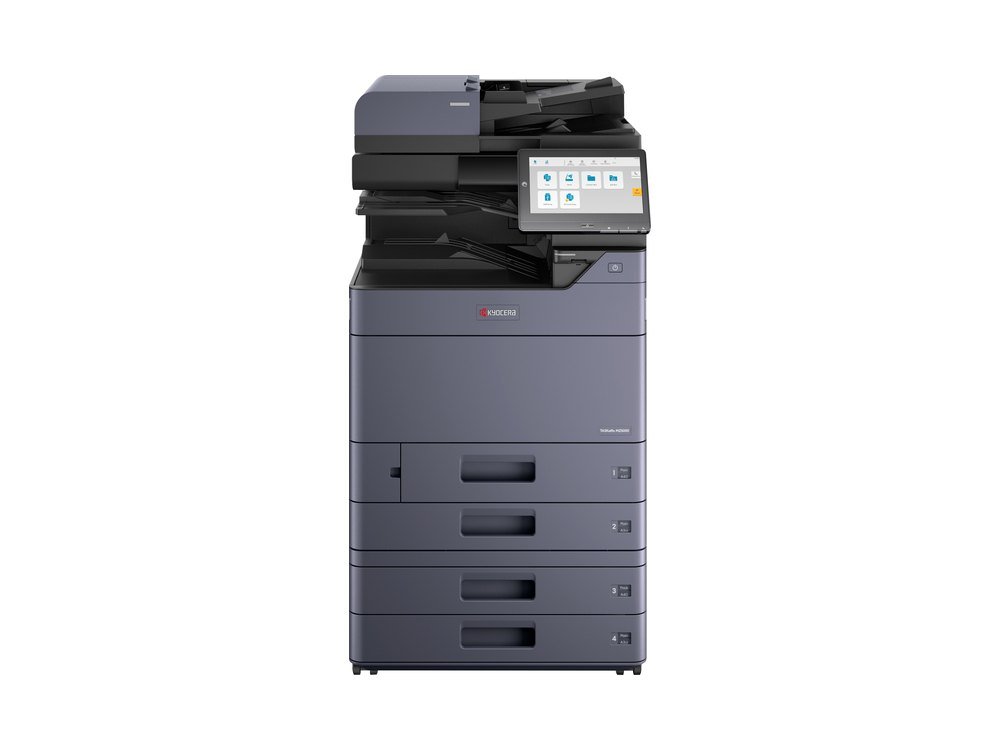

Home / Imaging / Kyocera TASKalfa MZ5001i
| Main Specifications | |
| Main Function | Copy, Print, Scan, Fax (Optional) |
| Writing Method | Semiconductor Laser |
| CPU | ARM A53 1.6GHz |
| Print Speed (A4) | 50/50 ppm |
| Scanning Speed (A4) 300dpi - DP-7150 - Simplex | 80 ipm |
| Scanning Speed (A4) 300dpi - DP-7150 - Duplex | 48 ipm |
| Scanning Speed (A4) 300dpi Dual Scan - DP-7160 - Simplex | 137 ipm |
| Scanning Speed (A4) 300dpi Dual Scan - DP-7160 - Duplex | 274 ipm |
| Scan with Duplex Feed Detection DP - DP-7170 - Simplex | 137 ipm |
| Scan with Duplex Feed Detection DP - DP-7170 - Duplex | 274 ipm |
| Memory | Standard 4GB (Max. 4GB) |
| SSD/HDD Capacity | SSD 128GB (Standard) / HDD 320GB or 1TB (Optional) |
| Stable Time (From the mainpower ON) | 17 seconds |
| Paper Capacity - Standard | 2 x 500 sheets (Cassette) + 150 sheets (MPT) (A4 / Letter size or less equivalent to 80 g/m2) 2 x 600 sheets (Cassette) + 165 sheets (MPT) (A4 / Letter size or less equivalent to 64 g/m2) |
| Paper Capacity - Maximum | 7,150 sheets (Main Unit + 2 x 1,500 sheets PF-7150 x1 + 3,000 sheets PF-7120 x1 + MPT) |
| Paper Size - Cassette | Min. A6R - Max. SRA3(320mm x 450mm); Cassette 1 Min. A6R – Max. A4R (Legal) |
| Paper Size - MPT | Min. A6R - Max. SRA3(320mm x 450mm) & Banner Print (1,220mm x 304.8mm) |
| Paper Weight - Cassette | 52~300g/m2 |
| Paper Weight - MPT | 52~300g/m2 ; Banner paper 136~163g/m2 |
| Duplex Printing | Paper size: Min. A6R - Max. SRA3(320mm x 450mm) ; Paper weight: 60~256g/m2 |
| Output Capacity | Max. 500 sheets + 100 sheets face-down with Inner Job Separator |
| Control Panel | 10.1inch Capacitance touch panel |
| Dimension (W x D x H) (Main Unit) | 602mm x 665mm x 790mm |
| Weight (Main Unit) | Approx. 83 kg |
| Power Consumption (Standard configuration) - Copy/Print Mode | 660W |
| Power Consumption (Standard configuration) - Stand-by Mode | 40W |
| Power Consumption (Standard configuration) - Energy Saver | 0.4W |
| Noise (ISO7779/ ISO9296) - Copy/Print Mode | 71dB |
| Noise (ISO7779/ ISO9296) - Stand-by Mode | 35dB |
| Copy Functions (Standard) | |
| Copy Size | Max. A3 (Ledger) - Min. A6R (StatementR) |
| Resolution | Scanning: 600 x 600 dpi ; Writing: 1200 x 1200 dpi multiple value |
| First Copy Time | 3.7 seconds |
| Zoom Ratio - Manual | 25% - 400% (1% per Step) |
| Multiple Copy | 1 - 9,999 |
| Print Functions (Standard) | |
| Resolution | 1,200 x 1,200 dpi ; 4,800 equivalent x 1,200 dpi level |
| PDL & Emulation | PRESCRIBE, PCL6 (PCL-XL, PCL 5e), KPDL3 (Postscript 3 compatible), XPS, OpenXPS, PDF, PPML |
| First Print Out Time | 4.3 seconds |
| Supported Protocol | TCP/IP(IPv4/IPv6), Bonjour |
| Interface | Ethernet (1000Base-T/100Base-TX/10Base-T)x1, USB 3.0x1, USB Host Interface (USB Host)x4, NFC TAGx1 |
| Scan Functions (Standard) | |
| Original size | Table: Max. A3 (Ledger) DP: Max. A3 (Ledger) - Min. A6R (DP-7140 is A5R) Banner: Max. 1,900mm |
| Resolution | 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi, 200 x 100 dpi, 200 x 400 dpi |
| File Format | TIFF, JPEG, XPS, OpenXPS, PDF (MMR/JPG compression/High-compression PDF), PDF/A-2, Encrypted PDF, Searchable PDF (Optional), MS Office file(Optional) |
| Image Type Mode | Text, Photo, Text + Photo, Text (Fine Line) |
| Send Method | SMB (Version 3.0), SMTP, FTP, FTPoverSSL, USB, TWAIN Source (Network), WIA Driver (Network), DFS |
| Address Storage | 2,000 addresses (Common address list), 500 groups (Group address list) |
| Fax Functions (Optional) | |
| Original Size | Max. A3 (Ledger) - Min. A6R (StatementR), Banner: 1,600mm |
| Coding Method | MMR, MR, MH, JBIG |
| Transmission Speed | 33.6 kpbs |
| Transmission Time | Less than 3 sec. (With JBIG) |
| Memory | 170MB |
| Specifications as published by Kyocera Document Solutions India; subject to change by the manufacturer. | |
Seamless Cloud Connectivity for Digital Transformation: IT x Business Communication The TASKalfa MZ7001i seriesis are designed to connect to the cloud, which supports your business in driving digital transformation and improving operational efficiency.
Supported by reliability and safety: Improved security for even higher safety levels. It provides security features that comply with the latest standards for protecting information assets, and its diverse authentication printing options ensure both convenience and cost-effectiveness, promoting a secure environment.
Simple for anyone to utilize and comprehend: The latest TASKalfa features are user-friendly and beneficial. →Usability Easy to use with a simple operation, offering features that are available to everyone. →Copy & Print The advancements in AI-driven writing tools have been impressive, enabling you to quickly create high-quality documents in your preferred style. →Scan Quickly and accurately convert and send data, with scanning features customized to suit your work style. →Fax The simple operation and clear notifications improve user experience, and it offers a wide range of features.
Sustainability: For nearly 30 years, Kyocera has aimed to extend product lifespan. Our multifunction devices feature durable components, minimizing parts replacement during maintenance.
