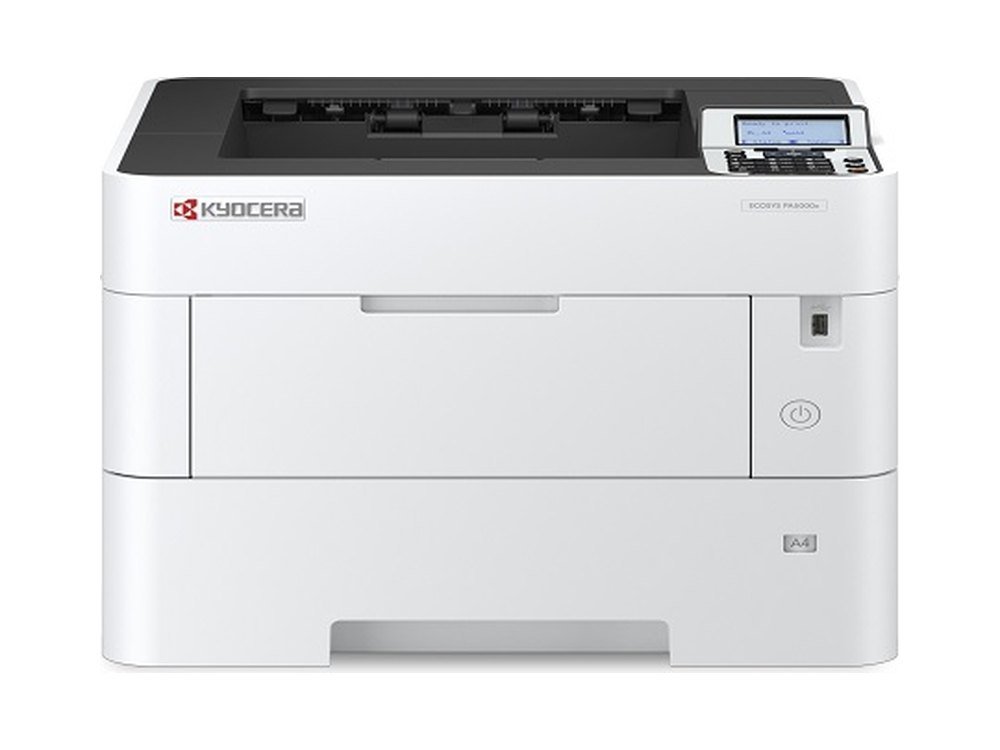

Home / Imaging / Kyocera ECOSYS PA5000x
| Main Specifications | |
| Type | Desktop |
| Writing Method | Laser exposure dry election |
| Print Speed (A4) (Mono) | 50ppm |
| First Print Out Time | 5.4 seconds |
| Warm Up Time | 20 seconds |
| Resolution | 1200dpi x 1200dpi |
| Duplex | Auto |
| Control Panel | LCD 21 characters x 5 lines with white LED back light |
| Power Consumption(Standard configuration) - Print Mode | 652W |
| Power Consumption(Standard configuration) - Stand-by Mode | 9W |
| Power Consumption(Standard configuration) - Sleep Mode | 0.5W |
| Noise(ISO7779/ ISO9296) - Print Mode | 55dB(A); Silent mode: 50dB(A) |
| Noise(ISO7779/ ISO9296) - Stand-by Mode | 30dB(A) |
| Dimension (W x D x H) (Main Unit) - 390 x 416 x 308mm | 390 x 416 x 343mm |
| Weight (Main Unit) | Approx. 16.1 kg |
| Controller | |
| CPU | Cortex-A53 Dual core 1.4GHz |
| Memory | Standard 512MB (Max. 2.5GB) |
| Interface | USB 2.0 High Speed x1; Ethernet 10BASE-T/100BASE-TX/1000BASE-T (TCP/IP. NetBEUI); USB Host x2; e-KUIO x1; Wireless LAN (optional) |
| PDL | PCL6 (PCL-XL / PCL 5c), KPDL3 (Postscript 3 compatible), PRESCRIBE, IBM Proprinter, Epson LQ-850, PDF Direct Print, XPS, Open XPS |
| Supported Protocol | TCP/IP, FTP, LPR, Port9100, IPP, IPP over SSL, NetBEUI, WSD Print, Apple Bonjour, IPsec, SNMPv3, IEEE802.1x, IPP over SSL/TLS, HTTP over SSL/TLS,FTP over SSL/TLS, SMTP over SSL/TLS, POP3 over SSL/TLS, Enhanced WSD over SSL/TLS |
| Operating System Supported | All current Windows operating systems (Windows Server 2003, 2008, 2012, Windows 7/8/8.1/10&11) MAC OS X Version 10.9 or higher, Chrome OS, Linux, as well as other operating systems on request. |
| USB Memory Printing | Standard |
| USB Memory Printing Format | TIFF, JPEG, PDF, XPS, Open XPS |
| Mobile Printing | AirPrint, Mopria, KYOCERA Mobile Print |
| Paper Handling | |
| Paper Capacity - Standard | 500 sheets x1 (Cassette) + 100 sheets (MPT) |
| Paper Capacity - Maximum | 2,600 sheets (Main Unit + PF-3110 x4 + MPT) |
| Paper Size - Cassette | Max. A4 (Legal) - Min. A6R |
| Paper Size - Option | Max. A4 (Legal) - Min. A5R |
| Paper Size - MPT | Max. 216mm x 356mm - Min. 70mm x 140mm, banner paper: up to 915mm |
| Paper Weight - Cassette | 60 - 120 g/m² |
| Paper Weight - Option | 60 - 120 g/m 2 |
| Paper Weight - MPT | 60 - 220 g/m 2 |
| Duplex Printing | Paper size: A4/Legal - A5R; Paper weight: 60 - 120 g/m² |
| Output Capacity | 250 sheets face-up, 500 sheets face-down |
| Specifications as published by Kyocera Document Solutions India; subject to change by the manufacturer. | |
Faster First Print Time: 60ppm Printer First Print Time only 4.5 sec
Enhanced Data Security: Ensure minimum security by using fixed encryption key by model
Simple Styling: Achieved simple look in a desktop environment
Supplied through the authorised manufacturer channel with full warranty. Installation, network configuration and user handover are included.
AMC is available as AMC with Spares Coverage or as a service-only AMC, with scheduled maintenance, remote monitoring and genuine spare parts. We also service machines bought from other vendors.
