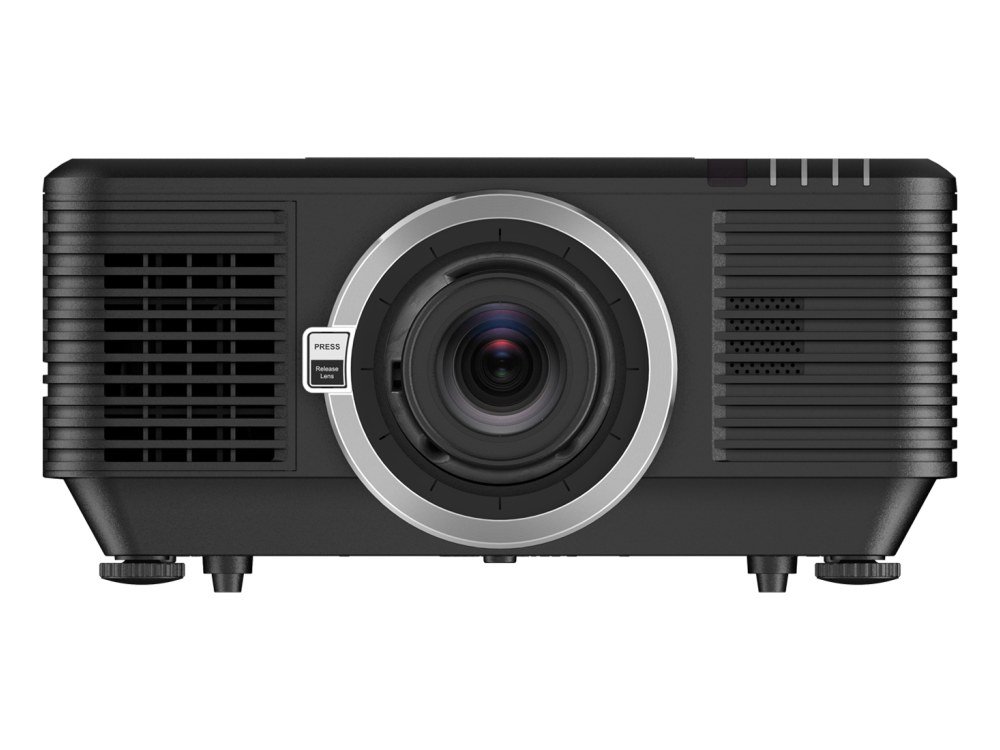

Home / Audio Visual / Multimedia Projector / Vivitek / DU7000Z Series / DU7299Z-BK
| Display Type | Single Chip 0.67" DLP Technology by TI |
| Brightness | 9,600 ANSI Lumens |
| Native Resolution | WUXGA (1920 x 1200), 16:10 format |
| Supportive Resolution | UHD (3840 x 2160) @60Hz 4K Compatible |
| Contrast Ratio | 1,300:1 (Native) / 20,000:1 (Dynamic) / 3,000,000:1 (Full On/Off) |
| Laser Life/Type | 20,000 + hours (Laser Phosphor Light Engine) |
| Aspect Ratio | 16:10 Native |
| Offset | Motorized Lens Shift |
| Lens Shift Range | Vertical: Bottom 50% to Top 70%, Horizontal: -5% - +5% |
| Projector Lens | 9 options (interchangeable, optional) |
| Throw Ratio (standard lens) | 1.54 - 1.93 |
| Image Size (standard lens) | 48.2" - 300" (diagonal) |
| Projection Distance (standard lens) | 2m - 10m (6.56ft - 32.8ft) |
| Keystone Correction | Vertical ±30°, Horizontal ±30° |
| Horizontal Frequency | 15, 31 - 102kHz |
| Vertical Scan Rate | 24 - 30Hz, 47 - 120Hz |
| 3D | Yes (DLP® Link, HDMI 2.0 (Blu-Ray 3D) |
| Speaker | 10W (x2) |
| Computer Compatibility | VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, 4K@60hz, Mac |
| Video Compatibility | SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), UHD, NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N), SECAM (B,D,G,K,K1,L) |
| I/O Connection Ports | HDMI v2.0 (x2) HDCP v2.2, Audio-In (3.5mm Jack), DVI-D, Audio-Out (RCA L/R), HDBaseT (Full Spec) RJ45, Wire Remote 3.5mm In/Out, Component/RGBHV (5 BNC), 3D-Sync In/Out, VGA-In / Out (DB15), 12V Trigger (3.5mm Jack), LAN Control (RJ45), USB Type A (5V/1.5A), RS-232-In/Out (DB-9), USB Type B (Service Only) |
| Projection Orientation | Table Top, Ceiling Mount (Front or Rear) |
| Security Solutions | Kensington® Security Slot, Security Bar, Keypad Lock |
| Dimensions (WxDxH) | 470 x 517 x 202mm (18.5" x 20.35" x 7.95") without ADJ-foot |
| Weight | 23.5Kg (51.8lbs) |
| Available ID Colors | White (DU7299Z-WH), Black (DU7299Z-BK) |
| Noise Level | 40dB/38dB (Normal/Eco. Mode) |
| Power Supply | AC 100-240V, 50/60Hz |
| Power Consumption | 575W (Normal Mode), 560W (Eco. Mode), < 0.5W (Standby Mode), < 2W (LAN Standby Mode) |
| Standard Accessories | AC Power Cord, VGA Cable, Remote Control, Filter, Lens Cap, Documentation Kit |
| Optional Accessories | Interchangeable Lens Options (x9) |
Laser phosphor light source: Solid state laser phosphor light source for reliable projection and performance; lamp-less, mercury-free design, almost maintenance-free with up to 20,000 hours of operating time
WUXGA with 4K input: Native WUXGA resolution with up to UHD-4K video signal transmission through HDBaseT and HDMI v2.0, plus High Dynamic Range (HDR10)
Nine interchangeable lenses: Powered zoom, focus and lens shift (horizontal/vertical) with Lens Positioning Memory and a quick touch lens release design
Installation flexibility: Portrait mode, 360° operation and projection, HV keystone and 4-corner adjustment, built-in 12V trigger for screen control
Connectivity: HDMI v2.0, DVI-D, HDBaseT, Component (5 BNC), VGA-In/Out; 3D compatibility with DLP Link and HDMI 2.0
Reliability and control: Airtight sealed engine and filter-less design, 24/7 continuous operation, network ready via RJ45 with Vivitek Projector Control Suite and Art-Net support
Supplied through the authorised manufacturer channel with full warranty. Installation, network configuration and user handover are included.
Warranty as per Vivitek India: 2 years on the projector. Warranty terms for the laser light source are confirmed in the quotation.
