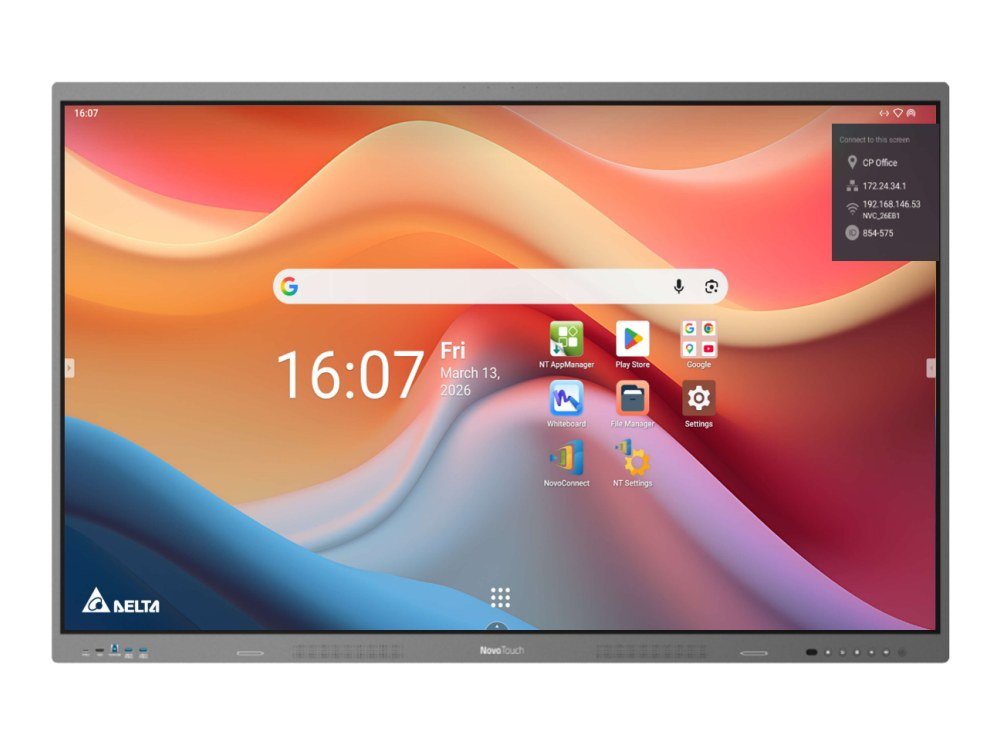

Home / Audio Visual / Interactive Flat Panel Display / Delta / NovoTouch TH Series / NovoTouch TH753i
| Display Type/Technology | Backlit D-LED |
| Panel Size | 75" |
| Brightness (Typ) | 400cd/m² |
| Contrast Ratio (Typ) | 1,200:1 |
| Dynamic Contrast Ratio | 30,000:1 |
| Native Resolution | 4K Ultra-HD (3840 x 2160) |
| Viewing Angle (H/V) | 178° / 178° |
| Aspect Ratio | 16:09 |
| Refresh Rate | 60Hz |
| Estimated Life Time (Typ) | 50,000 hours (Min) |
| Display Color | 1.07 billion (10-bit) |
| Installation Orientation | Landscape |
| Daily Operation (Hours/Days) | 16/7 |
| Touch Technology | Infrared Touch |
| Touch Points | 40 Point (Standard) |
| Touch Accuracy | ±1mm (Over 90% area) |
| Touch Response Time | ≤5ms |
| Touch Resolution | 32,768 x 32,768 |
| Surface Protection | Anti-Glare Thick Toughened Glass |
| Touch Tools | Finger, Stylus, Glove, Opaque Objects |
| Operating System | Google EDLA Certified |
| System Version | Android v14.0 |
| CPU | Octa-Core High-Performance ARM CPU |
| GPU | Mali G52 |
| RAM | 8GB |
| Internal Storage | 128GB |
| Input Display | HDMI v2.0 (x1) Side, HDMI v2.0 (x1) Front, USB-C (x1) Front (up to 15W PD) |
| Output Display Audio | HDMI-Out v2.0 (x1) (up to 4K@60Hz), Line-Out (3.5mm) (x1) |
| Internet | LAN (RJ45) (x1) (10/100/1000 Mbps) |
| Control | RS232-In (x1) |
| Wi-Fi | Wi-Fi 6 (2.4GHz/5GHz) |
| Bluetooth | BT 5.2 |
| I/R Receiver | Front (x1) (±25° Angle, >8m Distance) |
| USB-A | Front USB 3.0 (x2), Side USB 2.0 (x1) |
| USB-B | Front USB Type B (x1) (For Touch Port), Side USB Type B (x1) (For Touch Port) |
| USB-C (Side) | USB-C (x1) (data only) |
| Windows Module (Optional) | Standard 80-Pin OPS |
| Speakers | 18W x2 (Stereo) |
| Power Supply (Internal) | AC 100–240V, 50/60Hz (4.8A) |
| Power Consumption | ≤250W (max) |
| Standby Mode | ≤0.5W (Standby) |
| VESA Mounting (FPMPMI) | 600 x 400 |
| Mini PC VESA Mount | 100 x 100mm |
| Dimensions (L x H x D) | 1705.7 x 1032.3 x 90.2 mm |
| Weight | 50.8kg (111lbs) |
| Color | Silver |
| Standard Accessories | AC Power Cord, Stylus (x2), Remote Control (with Batteries), Wall Mount Kit, HDMI Cable, Touch Cable, Documentation Kit |
4K UHD with 40-point touch: 4K Ultra-HD resolution with 40-point infrared touch
AI-powered whiteboard: Shape recognition and handwriting-to-text, dual-tip pen support and floating app windows
Wireless collaboration: Up to 64 participants, multi-screen sharing and session recording
Android 14: Google EDLA certified Android v14.0
Digital signage: Digital signage capabilities with emergency notifications
Remote management: Cloud-based remote management and device control
Connectivity: Wi-Fi 6 and Bluetooth 5.2, with an optional 80-pin OPS Windows module
Supplied through the authorised manufacturer channel with full warranty. Installation, network configuration and user handover are included.
Supplied through the authorised Delta channel with manufacturer warranty support. Warranty terms are confirmed in the quotation.
