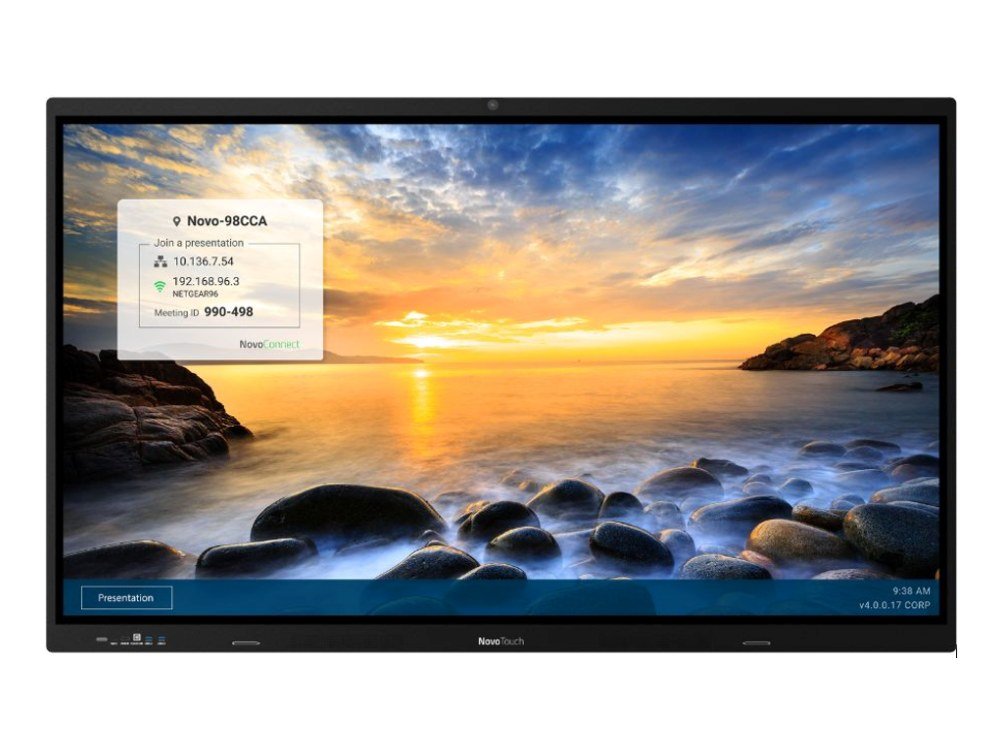

Home / Audio Visual / Interactive Flat Panel Display / Delta / NovoTouch TK3 Pro Series / NovoTouch TK653i Pro
| Panel Size | 65" |
| Type Technology | Backlit D-LED (IPS Panel) |
| Brightness | 450 cd/m² |
| Contrast Ratio (Typical) | 1200:1 |
| Contrast Ratio (Dynamic) | 30,000:1 |
| Native Resolution | 4K Ultra-HD (3840 x 2160) |
| Viewing Angle (H/V) | 178°/178° |
| Aspect Ratio | 16:9 |
| Refresh Rate | 60 Hz |
| Display Color | 1.07 Billion (10-bit) |
| Installation Orientation | Landscape |
| Response Time | 8 ms |
| Touch Technology | Infrared Touch |
| Touch Accuracy - Finger | ±1mm |
| Touch Accuracy - Passive Pen | ±1mm |
| Touch Points | 40 Points |
| Touch Response | ≤5ms |
| Touch Resolution | 32,768 x 32,768 |
| Surface Protection | Thick Toughened Glass |
| Touch Tools | Finger, Stylus, Glove, Opaque Objects |
| System Version | Android v14.0 |
| Browser | Yes |
| GPU | Mali G52 |
| CPU | Octa-Core |
| Internal Storage | 128GB |
| RAM | 8GB |
| Display Inputs | HDMI v2.0 (x2) Side, HDMI v2.0 (x1) Front |
| Audio Input | Mic (3.5mm) (x1) |
| Display Output | HDMI v2.0 (x1) Side |
| Audio Output | Audio-Out (3.5mm) (x1), SPDIF-Out (x1) |
| Internet - LAN | (RJ45) (x2) (10/100Mbps) |
| Control - RS232 | RS232-In (x1) |
| WiFi | IEEE802.11ax (2.4GHz/5GHz) |
| Bluetooth | BT 5.2 |
| I/R Receiver | Front (x1) |
| USB-A Front | USB 3.0 (x2) |
| USB-A Side | USB 3.0 (x1), USB 2.0 (x1) |
| USB-B Front | USB Type B (x1) (For Touch Port) |
| USB-B Side | USB Type B (x1) (For Touch Port) |
| USB-C Front | USB-C (x1) (15W charging and display input) |
| Windows Module | Standard Intel 80pin OPS (Option) |
| Speakers | 18W (x2) (Stereo) |
| Microphone | 6-microphones array (Pickup radius: 8M) |
| Camera | 48Mega-pixel, top-mounted |
| Power Supply | AC 100 – 240V, 50/60Hz (4.8A) |
| Power Consumption | ≤300W (typ.) |
| Standby Mode | ≤0.5W (Standby) |
| VESA Mounting | 600 x 400mm, 4 – M8 × 25mm |
| Dimensions (L x H x D) | 1,484.5 x 90 x 908 mm |
| Weight | 39kg |
| Color | Black |
| Mini PC VESA Mount | 100 x 100mm |
| Standard Accessories | AC Power Cord, Stylus (x2), Remote Control (W/Batteries), Wall Mount Kit, HDMI Cable (3M), Touch Cable (3M), Documentation Kit |
IPS-ADS panel: Exceptional image clarity, wide viewing angles and precise colour reproduction
AI camera and microphones: AI-powered 48-megapixel camera with a 6-microphone array
Wireless collaboration: NovoConnect, AirPlay and Google Cast; presents 4 screens at once and connects 64 participants
Whiteboard and annotation: Integrated digital whiteboard with up to 40 touch points and real-time annotation
Expandable: Optional Windows OPS module through the 80-pin slot
Digital signage: Built-in NovoDS Pro cloud service option
Remote management: Centralised control through the Remote Manager tool
Supplied through the authorised manufacturer channel with full warranty. Installation, network configuration and user handover are included.
Supplied through the authorised Delta channel with manufacturer warranty support. Warranty terms are confirmed in the quotation.
