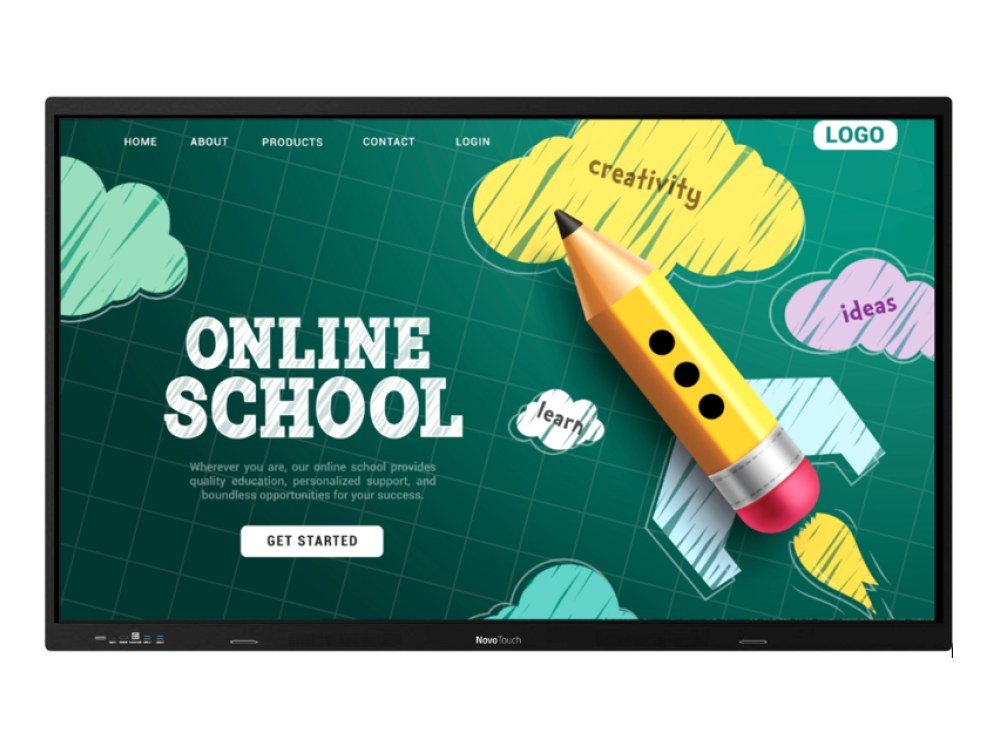

Home / Audio Visual / Interactive Flat Panel Display / Delta / NovoTouch TK3 Series / NovoTouch TK863i
| Panel Size | 86" |
| Type Technology | Backlit D-LED (IPS Panel) |
| Brightness | 450 cd/m² |
| Contrast Ratio | 1,200:1 |
| Dynamic Contrast Ratio | 30,000:1 |
| Native Resolution | 4K Ultra-HD (3840 x 2160) |
| Viewing Angle (H/V) | 178°/178° |
| Aspect Ratio | 16:09 |
| Refresh Rate | 60 Hz |
| Response Time | 8ms (Typ) |
| Display Color | 1.07 Billion (10-bit) |
| Installation Orientation | Landscape |
| Touch Technology | Infrared Touch |
| Touch Points | 40 Points |
| Finger Accuracy | ±1mm |
| Passive Pen Accuracy | ±1mm |
| Touch Response Time | ≤5ms |
| Touch Resolution | 32,768 x 32,768 |
| Surface Protection | Anti-Glare Thick Toughened Glass |
| Touch Tools | Finger, Stylus, Glove, Opaque Objects |
| System Version | Android v14.0 |
| CPU | Octa-Core |
| GPU | Mali G52 |
| RAM | 8GB |
| Internal Storage | 128 GB |
| Input - Display | HDMI v2.0 (x2) Side, HDMI v2.0 (x2) Front |
| Input - Audio | Mic (3.5) (x1) |
| Output - Display | HDMI v2.0 (x1) Side |
| Output - Audio | Audio-Out (3.5mm) (x1), SPDIF-Out (x1) |
| Internet | LAN (RJ45) (x2) (10/100Mbps) |
| Control | RS232-In (x1) |
| Wireless - Wifi | IEEE802.11ax (2.4GHz/5GHz) |
| Wireless - Bluetooth | BT 5.2 |
| Wireless - I/R Receiver | Front (x1) |
| USB-A - Front | USB 3.0 (x2) |
| USB-A - Side | USB 3.0 (x1), USB 2.0 (x1) |
| USB-B - Front | USB Type B (x1) (For Touch Port) |
| USB-B - Side | USB Type B (x1) (For Touch Port) |
| USB-C - Front | USB-C (x1) (15W charging and display input) |
| Windows Module | Standard Intel 80pin OPS (Option) |
| Speakers | 18W (x2) (Stereo) |
| Power Supply | AC 100 – 240V, 50/60Hz (4.8A) |
| Power Consumption | ≤450W (typ.) |
| Standby Mode | < 0.5W (Standby) |
| VESA Mounting | 600 x 400mm, 4 – M8 × 25mm |
| Mini PC VESA Mount | 100 x 100mm |
| Dimension (L x D x H) | 1953 x 90.2 x 1172.3 mm |
| Weight | 63 Kg |
| Color | Black |
| Standard Accessories | AC Power Cord, Stylus (x2), Remote Control (W/Batteries), Wall Mount Kit, HDMI Cable (3M), Touch Cable (3M), Documentation Kit |
IPS-ADS panel: Outstanding image clarity and vibrant colours
Octa-core and Android 14: High-performance octa-core processor with Android v14.0
4K UHD and 40-point touch: 4K Ultra-HD (3,840 x 2,160) with 40-point interactive IR touch
Wireless collaboration: NovoConnect for up to 64 participants and 4 simultaneous screens
BYOD: Windows, macOS, Ubuntu, Android and iOS devices
Connectivity: USB Type-C, HDMI and USB 2.0/3.0
Management and signage: Centralised Remote Manager, NovoDS Pro cloud digital signage and NT LiveNote annotations
Supplied through the authorised manufacturer channel with full warranty. Installation, network configuration and user handover are included.
Supplied through the authorised Delta channel with manufacturer warranty support. Warranty terms are confirmed in the quotation.
